We were lucky to have some old headers off another flathead here at the shop to use. I had to do some modifying to the rear exhaust leg on the drivers side so it would clear the steering tube.
Friday, December 28, 2012
Got the transmission mounted in the Phaeton
I worked on getting the transmission mounted. I had to clearance out the crossmember under the transmission a little more. Then I was able to make a trans mount.

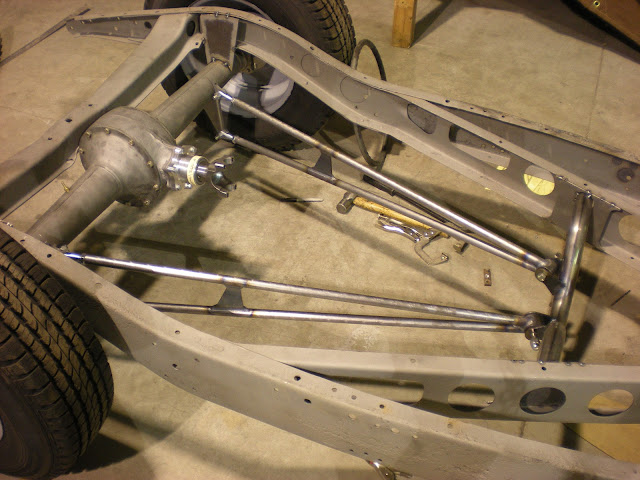

Finished the rear crossmember on the Phaeton.
I finished re-shaping the rear crossmember. Now I have to make the spring hangers that attatch to the axle and hold the spring. But overall it raised the spring quite a bit over how it was stock.
Wednesday, December 19, 2012
Got part of the crossmember re-shaped on the Phaeton.
I worked today on getting the center of the crossmember square instead of curved. Then I got that placed at the height I wanted in the car. Then I got the one piece re-shaped to connect it back onto the frame.
Tuesday, December 18, 2012
Working on modifying the rear crossmember for the new spring on the Phaeton.
I worked today on modifying the rear crossmember. Were going to run a 36' straight spring and the crossmember needs to be flattened so that the I can mount the spring up higher on the axle.

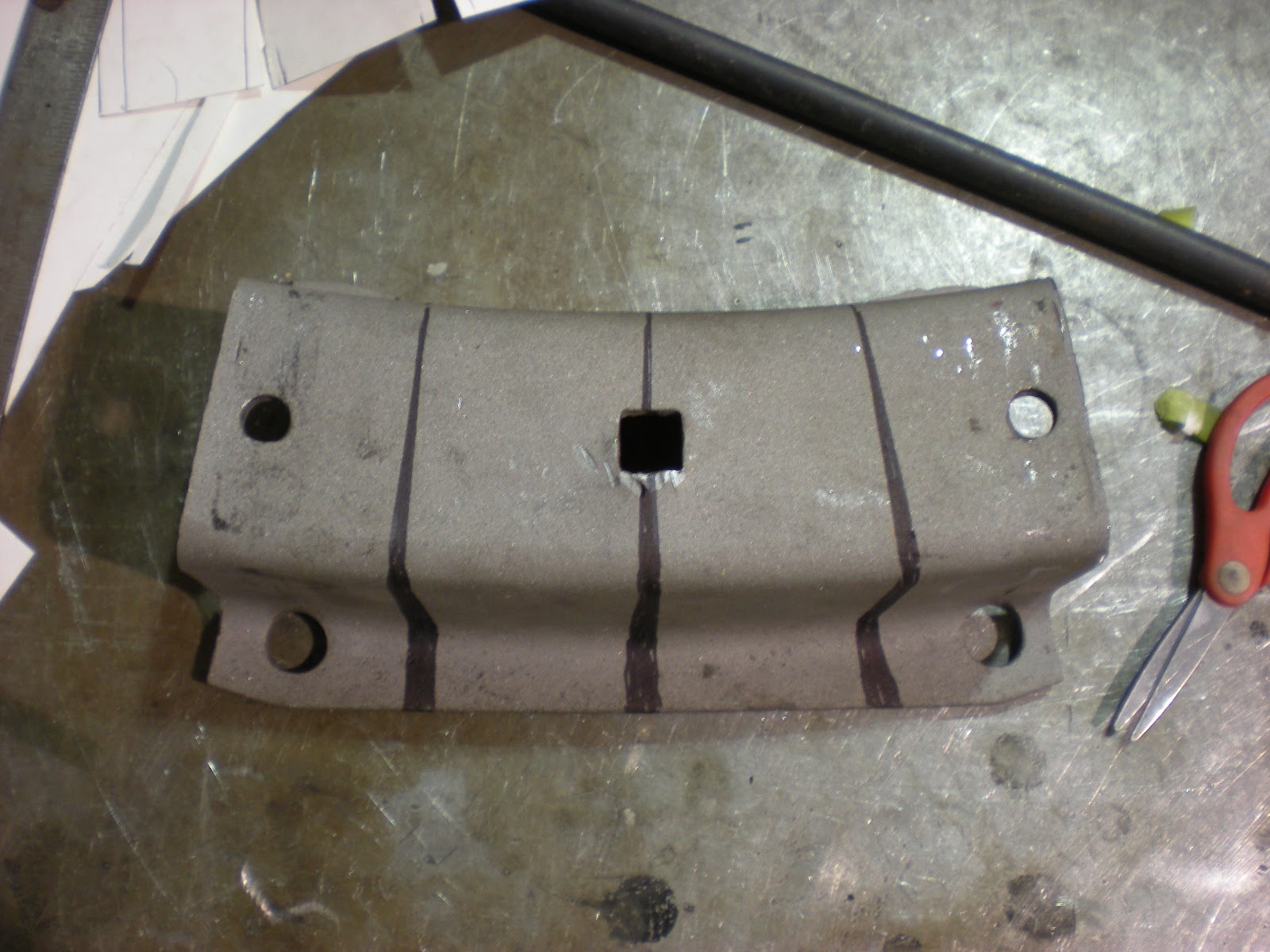

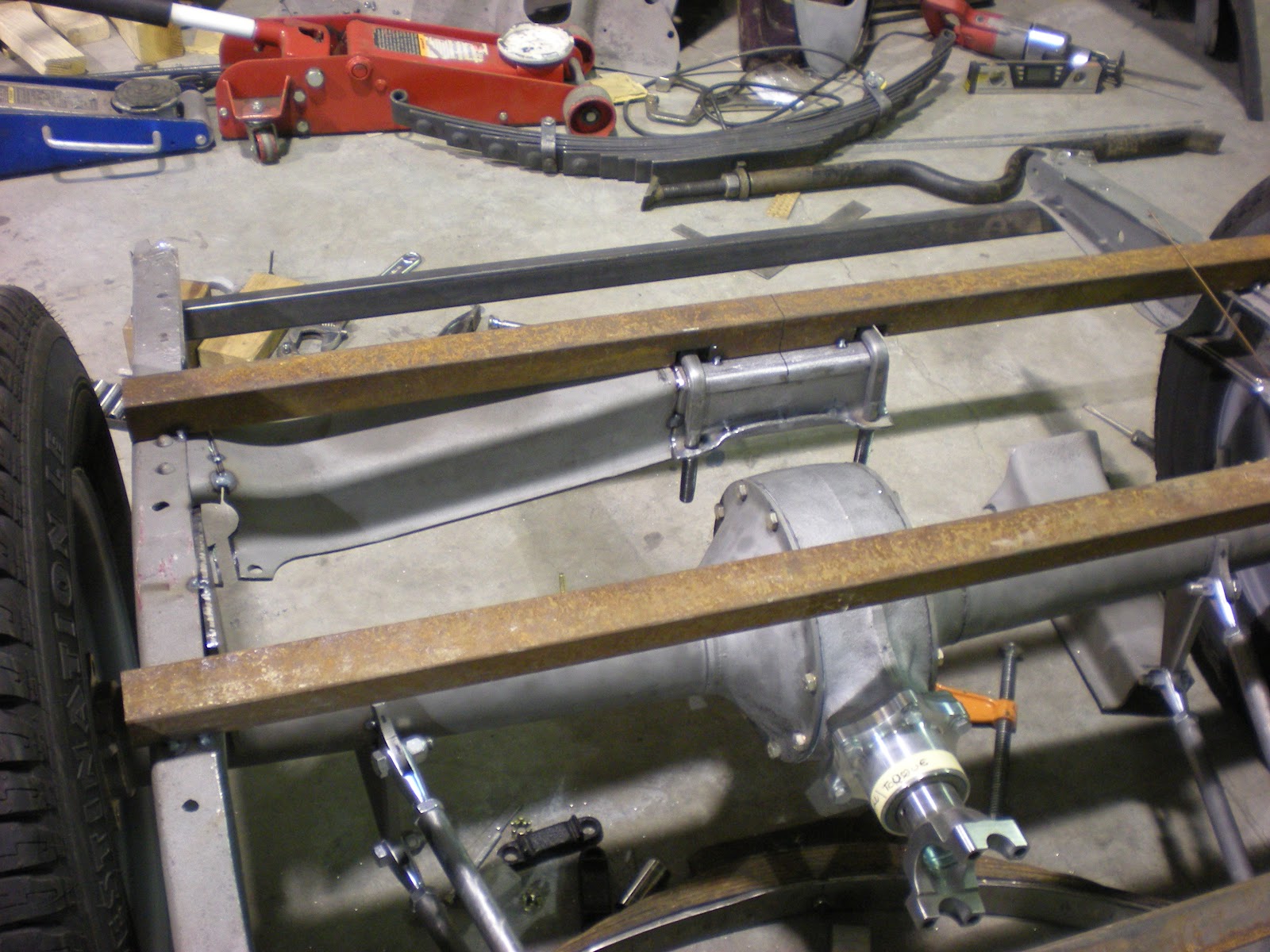

First I put bracing all over so that nothing would move when I removed the rear crossmember. Then I cut out the center, and the removed the other two sides. I have to modify the center piece by taking out some pie cuts so that I can make it straight.
First I put bracing all over so that nothing would move when I removed the rear crossmember. Then I cut out the center, and the removed the other two sides. I have to modify the center piece by taking out some pie cuts so that I can make it straight.
Monday, December 17, 2012
Monday, December 10, 2012
Tuesday, December 4, 2012
Figuring out the shape of the back of the VIcky.
I worked today on trying to figure out how I wanted the shape of the rear panel on the Vicky. After a few tries I think I got the shape that I'm looking for.
